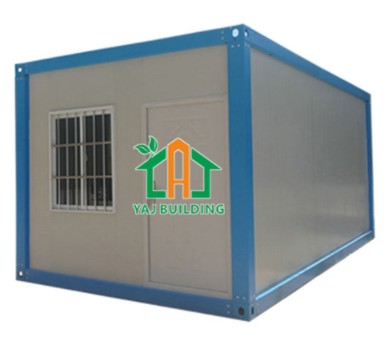

Stackable container van
Main Product Features
1. Flelible combination:could be 20t 40ft or more.
2. Packaging&shipping: detachable&nude pack,15units/40HQ
3. Stackable,portable,recyclable,low cost
4. Installation: Just need simple tools, no need a crane.4 workers/6sets/day
5. Fire resistance/fire proof,strength strucure,sealing,water-proof
6. Widely used for container accormmodation,office,bathroom etc.

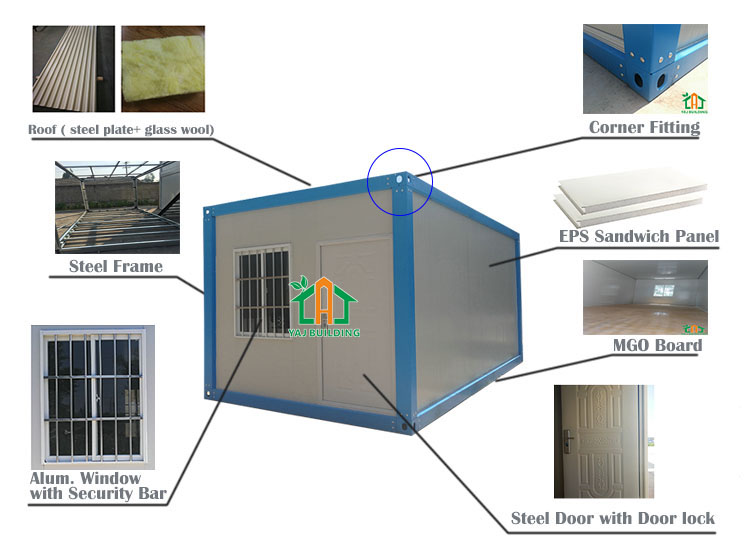

Technical Specification:
| Items | Specification |
| House Size | 5.95mx3mx2.8m |
| Area | 17.7square meter |
| Main Steel Frame | Galvanized steel frame with power painting treatment for exposed frame.others are galvanized |
| Roof | Corrugated steel sheet+50mm thick glass wool insulation+steel strip ceiling |
| Wall | EPS sandwich panel ,thk=50mm |
| Floor | 18mm MgO board |
| Window | aluminum sliding window with grill |
| Door | Steel Door |

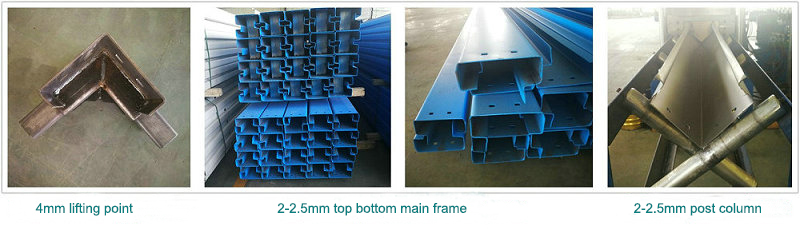

1.Main Top and bottom frame(stackable container)
Galvanized frame with power coating,which is hard to get rusted,top and bottom are all bolt connection which makes the house take less space in container.

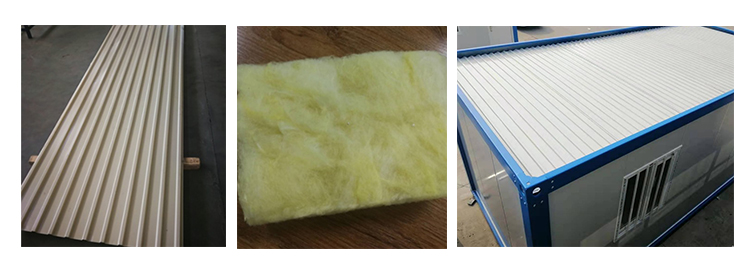

2.Wall&roof(stackable container)
Wall:50mm eps sandwich panel is standard material,
fiberglass wool panel, PU panel, Rockwool panel as option.
Roof and ceiling:corrugated steel sheet + 50mm fiberglass wool layer + corrugated steel ceiling

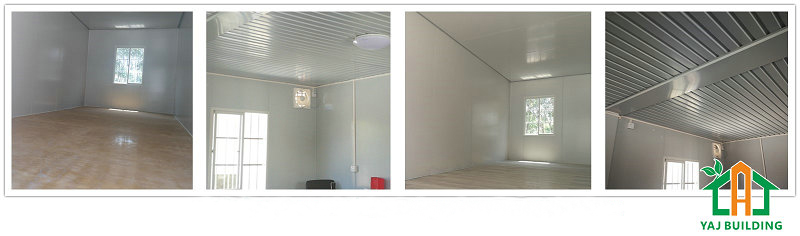

3.Floor and inside view(stackable container)
Fireproof MGO board as standard for bottom floor,
Vinyl flooring,carpet or wood floor and be added on top of MGO board as option

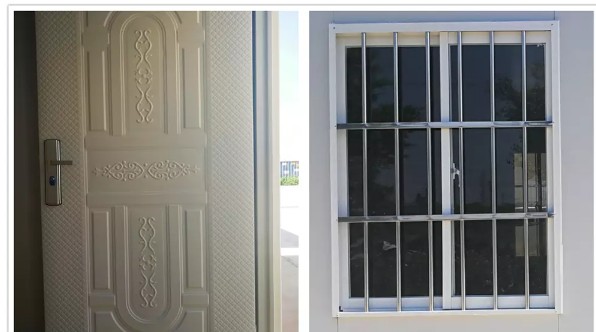

4.Window and door(stackable container)
Window: Alu alloy sliding window with grill, single glazed as standard
Door:steel security door as standard

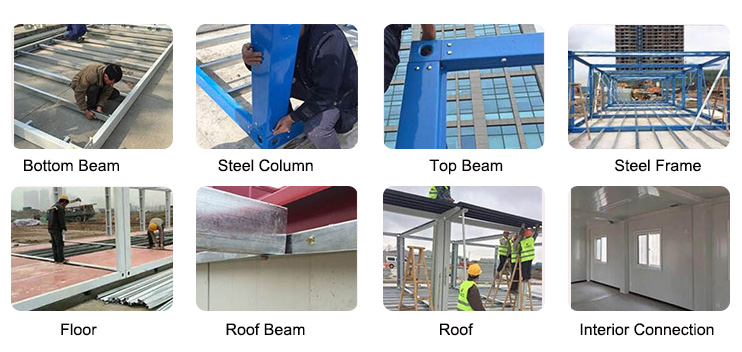

5.Frame & installation(stackable container)
